HousingAuthority-HousingAuthority

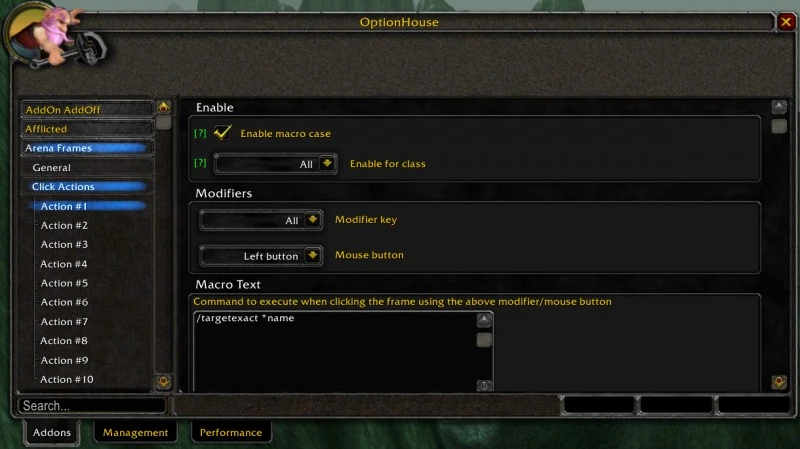

An example of a configuration created using HousingAuthority

HousingAuthority is a library used to make easy configurations that go into OptionHouse.

Table dataEdit

frameDataEdit

Fields
Field Type Default Details
frame frame frame Frame you want all of the HA widgets to go onto, if no frame is passed then a blank unnamed one is created.
columns number 1 Display style, 1 is a one by one style, 2 will be 2 widgets per a row and so on
handler table nil Handler for all callbacks to use, all callbacks require set/onSet/get to be passed as a string if this is set.
set function/string nil The set callback that all widgets inherit
onSet function/string nil The onSet callback that all widgets inherit
get function/string nil The get callback that all widgets inherit
Remarks

You only need to pass the frame if you're doing some sort of custom modification to it, otherwise you can just skip it and it'll handle everything.

If you do pass a frame, do not rely on it being the one you should register with OptionHouse if your widgets are going to overlap off the OptionHouse display frame we wrap it a scroll frame around it.

widgetDataEdit

All HousingAuthority widgets (input, color, dropdown, slider, checkbox, button) accept these by default as fields so aren't listed.

Fields
Field Type Default Details
text string <required> Text shown next to the widget
group string nil Used for grouping widgets together
var string/number/table <required> Used for identifying widgets, passed for all set/onSet/get/validate functions
help string nil Shows a little "[?]" next to each widget in green, handy if you need to clarify or give extra information that can't be explained in the text alone.
handler table nil Handler function for using in the callbacks require set/onSet/get to be passed as a string if this is set.
set function/string <required> Function called when a widgets configuration value changes
onSet function/string nil Same as set, however you should only use this if you need to know when something changes not changing the configuration
get function/string <required> Called when we're loading the widget and when the frame is shown, the actual value of the widget
order integer 999999 Order to display the widgets in
Remarks

Grouping

Grouping is a way to break up configuration so it doesn't look like a single mass of options, if one widget has the group field passed all of them must, the value should be the text that you want displayed, for example the below will show an input and color widget inside a frame labeled "Frame" and a check inside a frame labeled "General".

{ { type = "input",
    group = "Frame",
    <input data>
  }
  { type = "color",
    group = "Frame",
    <input data>
  }
  { type = "check",
    group = "General",
    <input data>
  } }

Callbacks These are how the callback functions are handled along with arguments used.

No handlers passed

set(var, value) onSet(var, value) validate(var, value) get(var)

Handler passed

handler[set](handler, var, value) handler[onSet](handler, var, value) handler[validate](handler, var, value) handler[get](handler, var)

HousingAuthority APIEdit

HA:RegisterFrame([frameData])Edit

Returns
Return Type Details
HAObj table HousingAuthority data object for registering widgets

HA:CreateConfiguration(widgets[, frameData])Edit

Args
Return Type Details
widgets table List of all the widgets you want to add
frameData table Frame data
Returns
Return Type Details
frame frame Frame that should be registered with OptionHouse, this is just the results of HAObj:GetFrame()
Types

List of widget types that can be used

Type Called Function
group HAObj:CreateGroup()
input HAObj:CreateInput()
dropdown HAObj:CreateDropdown()
color HAObj:CreateColorPicker()
check HAObj:CreateCheckBox()
button HAObj:CreateButton()
slider HAObj:CreateSlider()
label HAObj:CreateLabel()
Remarks

Most of the time, all you want is to call this and just pass the table with all the configuratiions, if you need more flexability you can use the below HAObject API's.

Tables should look like this,

{ { type = "input",
    <input data arguments>
  },
  { type = "dropdown",
    <dropdown data arguments>
  },
}

and so on.

HousingAuthority Object APIEdit

HAObj:GetFrame()Edit

Returns
Return Type Details
frame Frame/ScrollFrame Frame with all the widgets displayed in it, that should be registered with OptionHouse
Remarks

Once you call this, you can no longer call any of the widget creation functions, if the total height of all the widgets is creater then 280 then we wrap the passed frame around a ScrollFrame and return the ScrollFrame instead.

HAObj:GetObject(frame)Edit

Returns the HAObj that created the frame that was passed in.

Args
Name Type Details
Frame frame HA display frame thats given when calling HAObj:GetFrame()
Returns
Return Type Details
HAObj table Useful if you want to update a dropdown thats already beeen created, but you created it using [[#HA:CreateConfiguration.28widgets.5B.2C_frameData.5D.29|HAObj:CreateConfiguratiion()]

HAObj:CreateGroup(data)Edit

Data fields
Field Type Default Details
background table rgb of 0.094117 Backdrop color of the group, by default this is a blackish gray
border table Backdrop border color of the group, by default this is gray
Remarks

This is a way to configure how your group frames will look, not required if you're using grouping due to the defaults, you should pass the tables formatted as { r = #, g = #, b = # } for both background and border.

HAObj:CreateDropdown(data)Edit

Dropdown for selecting a list of options, useful when you don't want them to be able to enter anytihng like in an input

Data fields
Field Type Default Details
text string <required> Actual text to display
default string/number nil Default value to select by key, if the default doesn't match the list we use the first row
list table <required> List of rows to shown, must be formatted as { { "key1"", "text1" }, { "key2", "text2" } } and so on
Returns
Return Type
dropdownFrame Frame

HAObj:UpdateDropdown(data)Edit

Allows you to update an already created dropdown with a new default and list

Data fields
Field Type Default Details
var table/string/number <required> Used for identifying the droopdown to be updated
default string/number nil Default value to select by key, if the default doesn't match the list we use the first row
list table <required> List of rows to shown, must be formatted as { { "key1"", "text1" }, { "key2", "text2" } } and so on
Remarks

You should only call this when you know the dropdown is hidden, meanning either OnShow for the frame or in response to set/onSet, if you try and call it with it open then it'll show the old rows followed by the new ones.

var is used for identify the dropdown, if the dropdown is a table then the values of each must match 100%, if you have multiple dropdowns with the same var then it'll update the first it finds.

HAObj:CreateLabel(data)Edit

Adds a simple text that can be used to break up configuration to prevent them all looking clustered together, can be used in place or grouping or with it if need be.

Data fields
Field Type Default Details
text string <required> Actual text to display
color table nil Text color, should be passed as { r = #, g = #, b = # }
font fontInstance GameFontNormal Font instance to inherit from
fontPath string nil Font file to use when displaying the text, by default will grab from GameFontNormal
fontSize number nil Size of the font, can only be used if you pass fontPath too
fontFlag string nil Display flags, see FontInstance:SetFont() for possible arguments, requires fontPath and fontSize to be used
xPos number 8 Allows finer control over how far other widgets are from the label
yPos number 5 Allows finger control on how far this widget is from either the side or another widget
Returns
Return Type
label FontString

HAObj:CreateColorPicker(data)Edit

Creates a small button that can be used for setting colors, the middle of the button is the currnet color used

Data fields
Field Type Default Details
default table nil Default color to use if get() returns nil
Returns
Return Type
button Button
Remarks

When calling set and onSet we call return the value as { r = #, g = #, b = # }, get must return it in this same format.

HAObj:CreateButton(data)Edit

Simple button that lets you respond when it's clicked

Data fields
Field Type Default Details
width number text width + 18 How width the button should be
Remarks

This only responds to the set and onSet fields from widgetData, no value will be passed to them.

Returns
Return Type
button Button

HAObj:CreateCheckBox(data)Edit

Simple check box

Data fields
Field Type Default Details
default booolean nil Default value when get() returns nil
Returns
Return Type
checkBox CheckButton

HAObj:CreateInput(data)Edit

Text or number inputt field

Data fields
Field Type Default Details
width number 120 Width of the input box
default string/number nil Default value inside the input
realTime boolean false By default, we only consider the input box changed when focus is lost or enter is pressed, you can change it using this to be considered changed whenever the text changes or enter is pressed
maxChars number nil Maximum number of characters that can be entered
numberic boolean false Only allows entering of numerical characters into the input box
validate string/function nil Allows you to restrict whats considered valid iinput
error string nil Shows a red "[!]" next to the widget when validate returns nil, string format is called on this, so you can also show the value entered in the error message
Remarks

Validate allows you to restrict thats considered acceptable, if it returns nil then it's considered rejected and a red "[!]" will appear using the message you provided from the error field, once validate returns anything except nil then set/onSet is called.

An example of how this works would be only allowing numeric input.

local function validateInput(var, value)
   return tonumber(value)
end

If the user enters abc then nil is returned because no numbers can be found in it, if he entered ab10 then it would return 10 and thats what would be passed to the set and onSet functions.

Returns
Return Type
input EditBox

HAObj:CreateSlider(data)Edit

Slider for things like opacity or scale

Data fields
Field Type Default Details
default number nil Default value used when get() returns nil
format string nil This works the same way as the text field does, however we call it with a string format of Slider:GetValue() * 100, useful if you want to show something like "Scale: %d%%"
min number 0.0 Lowest the slider can go
minText string 0% Text showing how low the slider can go
max number 100 Highest the slider can go
maxText string 100% Text showing how high the slider can go
step number 0.01 How much to increment the slider by when dragged, lower numbers give finer controls when sliding it
manualInput boolean false Shows a small input box next to the slider that lets the user manually enter the value
Returns
Return Type
slider Slider
